Senin, 20 Oktober 2014

FURUNO PR240 POWER SUPPLY


HARGA : RP 15,500,000

This is an AC/DC power supply unit. A power supply unit also known as a rectifier is a device that supplies power to an electronic load by converting Alternating Current (AC) to Direct Current (DC).
PR-240 unit supplies power to the system.
PR-240 connection converts 200-230 volt alternating current (AC) into a steady low-voltage direct current (DC) usable by the system.
It is shipped ready for connection and no soldering is required.
Different ships have different supply voltages, this device provides for input voltage modification. For connection to 100VAC- 115VAC, tap and terminal board connections need to be changed and for this too no soldering is required.
The maximum load for this unit is 8A 24V Direct Current output.
Labels are supplied in the accessories and should be attached to the front panel of the PR-240 according the mains supply of the ship.
Components of PR-240 supply unit include: 12 A DC Breaker for DC output, 5 A AC Breaker for AC input, AC-OFF detection, ON/OFF Backup, Fuse (6.3A,240V), 24 VDC output voltage adjustment, Wiring change for AC input voltage selection (115 V /230V) and Jumper Wire for AC input voltage selection (115 V/230 V).











Selasa, 02 September 2014

COMPASS AZIMUTH 1000 KVH

Azimuth 1000.
HARGA : RP 16,500,000
If you want a compass with the features, quality, and design that meet the needs of your commercial vessel, the KVH Azimuth 1000 is the compass system for you! By combining digital heading and the familiar compass rose on a large, heads-up display with an easy-to-use off-course mode, the Azimuth 1000 makes steering easy and precise – no matter how fast you’re going or how rough the seas.
Totally self-contained for easy installation and designed to military quality standards, the Azimuth 1000 was named “Best Electronic Compass” by the National Marine Electronics Association (NMEA) dealers for eight consecutive years. Azimuth 1000 is standard equipment on many leading brands of powerboats. Even the U.S. Navy approved the replacement of its ships’ magnetic card compasses with KVH digital compasses. The Azimuth 1000 can also provide heading data for use with radars, autopilots, plotters, and PC software through its fast,10 Hz NMEA 0183 output port.

Minggu, 24 Agustus 2014

INMARSAT C FELCOM 18 WITH SSAS



.
HARGA : RP 97,000,000

Proven solutions for Inmarsat-C/Inmarsat MINI-C services fully incorporated SSAS and LRIT capabilities The FELCOM18 is FURUNO's new Inmarsat-C Mobile Earth Station. It provides a high quality two-way telex and data link between ships and other parties at sea or on land. All functions and services of the Inmarsat-C system are provided: EGC (Safety NET/FleetNET), distress message handling, two-way digital store-and-forward messaging including polling, data reporting, E-mail, etc. Distress alert are initiated by the remote distress alert unit. The distress message including own ship's position is easily edited. A PC can be used for editing the message via Ethernet when it is supplied with dedicated software.
The FELCOM18 consists of an antenna and display unit with keyboard. The display unit embodies a 10.4" color LCD and processor unit. The distress alert button is incorporated in the display for emergency. Data files and utility program on SD Memory Cards are easily loaded into the processor through the front loading card slot in the display unit. The compact design of display unit and omni-directional antenna unit offer space-saving installation. An optional GPS module is available for position reporting without operator's intervention. GMDSS compliance can be achieved by adding a printer and a AC/DC power supply unit.
  • Inmarsat-C Mobile Earth Station terminal for GMDSS application
  • Full GMDSS compliance with optional printer and AC/DC power supply
  • SSAS capability with SSAS Alert Unit
  • Compatibility with LRIT application
  • A wide variety of communication schemes available: telex,FAX, emailing, EGC, data reporting/polling, etc.
  • SD card for recording media

FURUNO SATELITE COMPASS SC-50


HARGA : RP 74,000,000
. We are excited to introduce our second generation Satellite Compass, the SC50, which utilizes Furuno’s advanced GPS Kinematic technology. Satellite Compass performance is not affected by ship’s speed, latitude, geomagnetism, etc. This hybrid integration of GPS receiver technology and a 3-axis solid-state rate sensor provide accurate and steady heading information, even when bridges or tall buildings block satellite signals. Unlike conventional magnetic and gyro compasses, accuracy is not affected by G-force or velocity. Furthermore, when compared to other GPS based compass systems incorporating only two antennas, our addition of a third GPS antenna provides enhanced accuracy while reducing the negative effects of pitch, roll, and yaw.
The SC50 offers highly accurate GPS WAAS Data for SOG, COG, ROT, and L/L. Multiple, programmable hi-speed heading data outputs allow you to send this information where you need it, and our unique Analog Pitch and Roll Output can be used to enhance your Furuno Sonar System.
This Satellite Compass is ideal as an alternative to a traditionally expensive and high-maintenance gyrocompass for non-compulsory vessels, as well as being the perfect back up solution to a gyro for a compulsory vessel. The SC50 offers a wide range of applications for providing fast, stable, precision heading information to numerous devices, including: Radar/ARPA, Satellite Communications & TV systems, Autopilots (based upon I/F type), AIS, ECDIS, Scanning Sonar, Chart Plotters, etc.
Note: If used with NavNet TZtouch, IF-NMEA2K2 is required to convert from NMEA0183 to NMEA2000


Standard Features
  • Newly designed processor unit, providing enhanced accuracy and performance
  • Multiple, programmable hi-speed heading data outputs in IEC 61121-1/2(NMEA0183/HS)
  • Highly Accurate GPS WAAS Data - SOG, COG, ROT, and L/L
  • Unique Analog Pitch and Roll Output for Furuno Sonar Systems
  • Heading information for Radar/ARPA, AIS, ECDIS, Scanning Sonar and Chart Plotter
  • Typical heading accuracy of 0.8 degrees for SC50
  • Tri-antenna system reduces effect of pitching, rolling and yawing
  • Short settling time of 3-4 minutes
  • Clear 4.5 inch backlit Silver Bright LCD
  • Heading output in NMEA 0183, IEC 61162-1 and AD-10 (25ms update)
  • Four display modes: Compass Rose, Steering, Nav Data, Heading Mode
  • Follow-up rate of 45 degrees/second
  • Works as normal GPS navigator
  • 12 discrete channels
  • No mechanical parts such as gimbals or rotating meter, making compass free from routine maintenance
  • IMO MSC.116(73) Type Approved as a verified THD -Transmitting Heading Device
Shipping Information

  • TBA
Power Requirements

  • 12-24 VDC

Jumat, 04 April 2014

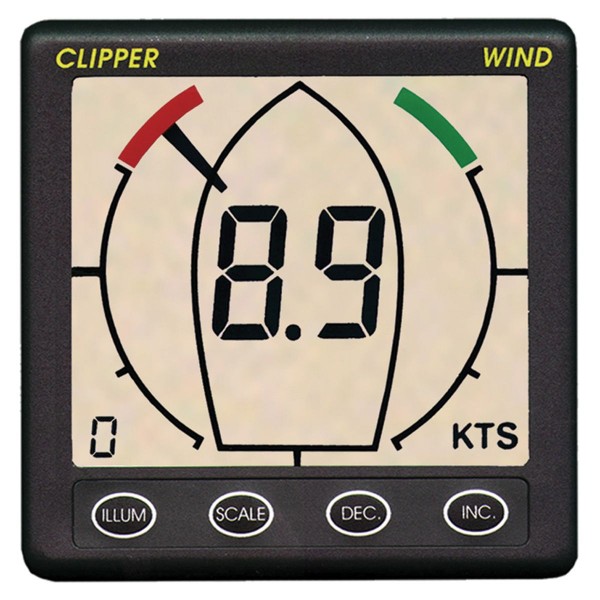

WINDSPEED CLIPPER

HARGA : RP 10,500,000

The Clipper Wind system shares the same 110mm square case as its sister instruments in the Clipper range. the display is exceptionally large and clear, with 60 segments for full 360 degree direction indication. Windspeed is shown in knots, M.P.H. or Metres/second. The pointer style is selectable, from the single segment shown above, to multi segments for greater clarity or a ‘windex’ style indicator. The Masthead unit is well proven and supplied with 20 metres of cable as standard
Clipper Wind system is supplied complete with Display unit, masthead unit with cable and mounting blocks.




MAGNETRON MG 4010


HARGA ; 24,500,000
ABRIDGED DATA
Compact, rugged, lightweight, fixed frequency pulse
magnetron with very low levels of unwanted emissions.
Operating frequency...........................9410 ± 30MHz
Typical peak output power.....................12.5 kW

GENERAL
Electrical Cathode
.......................................................
indirectly heated
Heater voltage (see note 1) :6.3 V
Heater current at 6.3 V (see note 2) 0.5A
Cathode pre-heating time (minimum)
(see note 3) :60s
Input capacitance :8.0pF
max
Temperature coefficient of frequency

Mechanical
Overall dimensions :see outline
Net weight : 250 g approx

Kamis, 27 Maret 2014

ICOM IC M24 HT MARINE

HARGA RP 2,550,000

Energy-saving 3.7V circuitry

The IC-M24 is powered by the 3.7V Lithium-Ion battery pack, BP-266, to reduce the volume and weight of the radio. A newly developed PA circuit produces 5W (approx.) RF output and powerful 600mW (typ.) audio even at this low voltage, while saving battery consumption for 10 hours of operating time. *
Typical operation with Tx (Hi): Rx: standby=5:5:90.

ICOM M34 HT MARINE

HARGA     RP 2,600,000

Easy to see LCD with large channel indication

The IC-M34 has an easy to see LCD (32 × 16 mm; 114 × 58 in) with large 2-digit channel number indication. The volume and SQL levels are shown in the display. LCD and key backlighting is standard for night
time operation.

Other features

  • Powerful 5W output power
  • Dual/Tri-watch functions
  • 4-step battery life indicator
  • Weather channel with weather alert
  • 2-step power saver
  • Auto scan function
  • Instant access to Ch 16 or Ch 9
  • Optional battery case for using with alkaline cells
    (The IC-M34 may sink when the battery case is attached, depending on the installed batteries)

Minggu, 12 Januari 2014

REPEATER MOTOROLA CDR 500

'
HARGA RP 54,500,000
BOX ORIGINAL MOTOROLA CDR 500 + INTERFACE RICK
RADIO MOTOROLA GM 338 25 WATT
POWER : 220 VAC / 13,8 VDC

As your business grows and changes, your communication requirements expand too. Available in lowband, UHF and VHF frequencies, the Motorola CDR500 repeaters suit a wide variety of applications and can be integrated with your existing infrastructure to meet your needs.

Features and Benefits

Flexible

  • Users have the flexibility to choose their frequency and power levels best-suited for their business or to combine two frequencies to create bi-directional or crossband repeater
  • The CDR500 can be installed in a 19" rack or mounted on the wall with a handy, lockable wall mount
  • The sleek and compact design of CDR500 allows quick and easy access for system adjustment

Compact & Reliable

  • A wide range of radio accessories and antenna enhances the repeaters' capabilities
